Bike WELT G110 2025_P

Stylish aluminium gravel bike ready for epic bikepacking adventures, equipped with Shimano GRX 812 1*11 drivetrain and hydraulic brakes with ceramic brake pads.

All for your epic adventure: Freedom, Speed & Style.

Purposes

For uncompromisingly epic multi-day trips or races. Speed, handling, control

Adventure Terrain

The whole spectrum of gravel roads with rough terrain: forest, trails, gravel

Key highlights

  • Shimano GRX-812 Gravel drivetrain 1*11.
  • Frame and carbon fork on axles for better reliability.
  • Aesthetic smooth frame thanks to a special technique of the main tubes welding.
  • Ultra-fast response thanks to disc brakes with ceramic brake pads.
  • Possibility of mounting tires of different widths up to 45 mm.
  • Hubs with sealed bearings.
  • Tanwall tires.

Welt G110

The G110 opens up new roads allowing you to push beyond the boundaries. It is a real freedom to not have to choose between style, reliability, comfort and control. Just take it all with the G110!

High speeds, thoughtful weight distribution, maximum control over the situation and standout style. Optimal groupset combination: Shimano GRX hydraulic brakes with ceramic brake pads for ultra-fast response, Shimano GRX 1*11 drivetrain ready to tackle any terrain.

The optimal gravel grip position, thanks to the wider and flared drop bars, provides maximum control in all conditions. Everything you may need while traveling is with you. Food and water supplies, clothing, a repair kit, a tent and equipment for a bivouac if needed: all this is attached to a lightweight aluminium frame and carbon fork through a huge number of mounting eyelets. The frame geometry is specially designed for comfort on adventures and trips, without losing speed.

Key Features

Optimal groupset for offroading

Shimano GRX-812 1*11 drivetrain. The best you can find for a gravel bike.

Ultra-fast grip and overheating protection

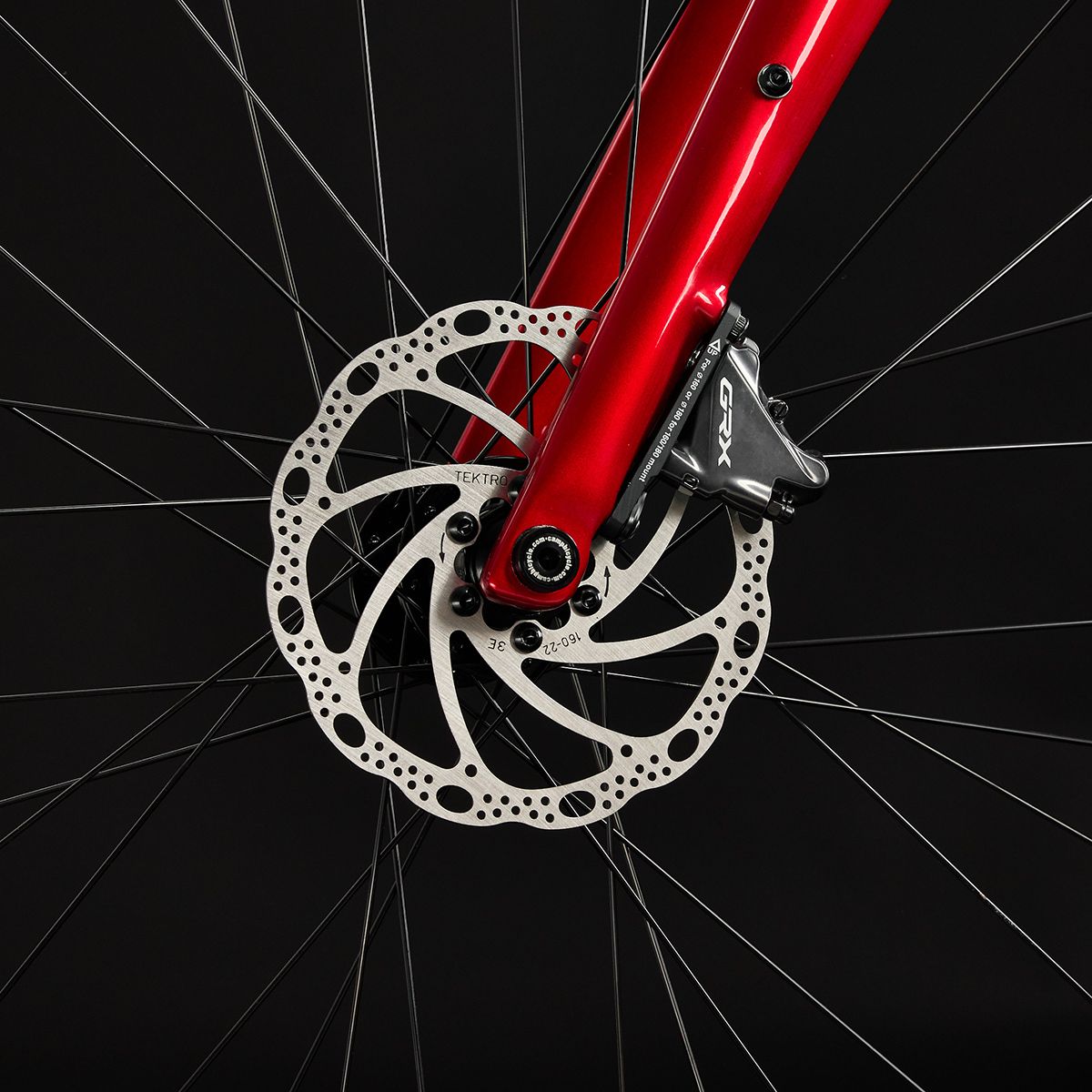

Hydraulic brakes with ceramic brake pads Shimano GRX: BR-RX810.

Tires are even wider

Possibility to install tires up to 45 mm.

More comfort - less fatigue

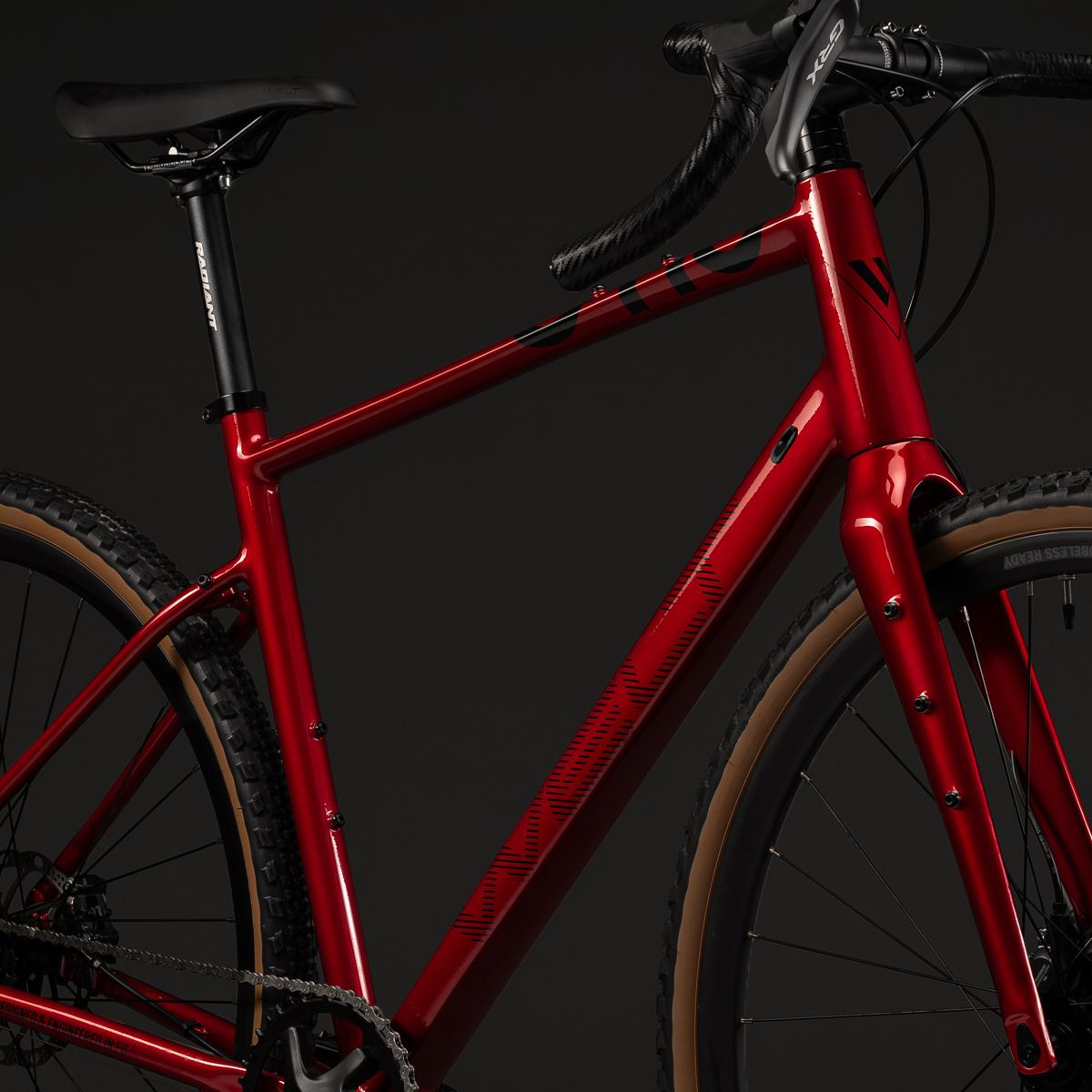

The geometry of the aluminium frame makes for a comfortable ride over long distances. High responsiveness while riding.

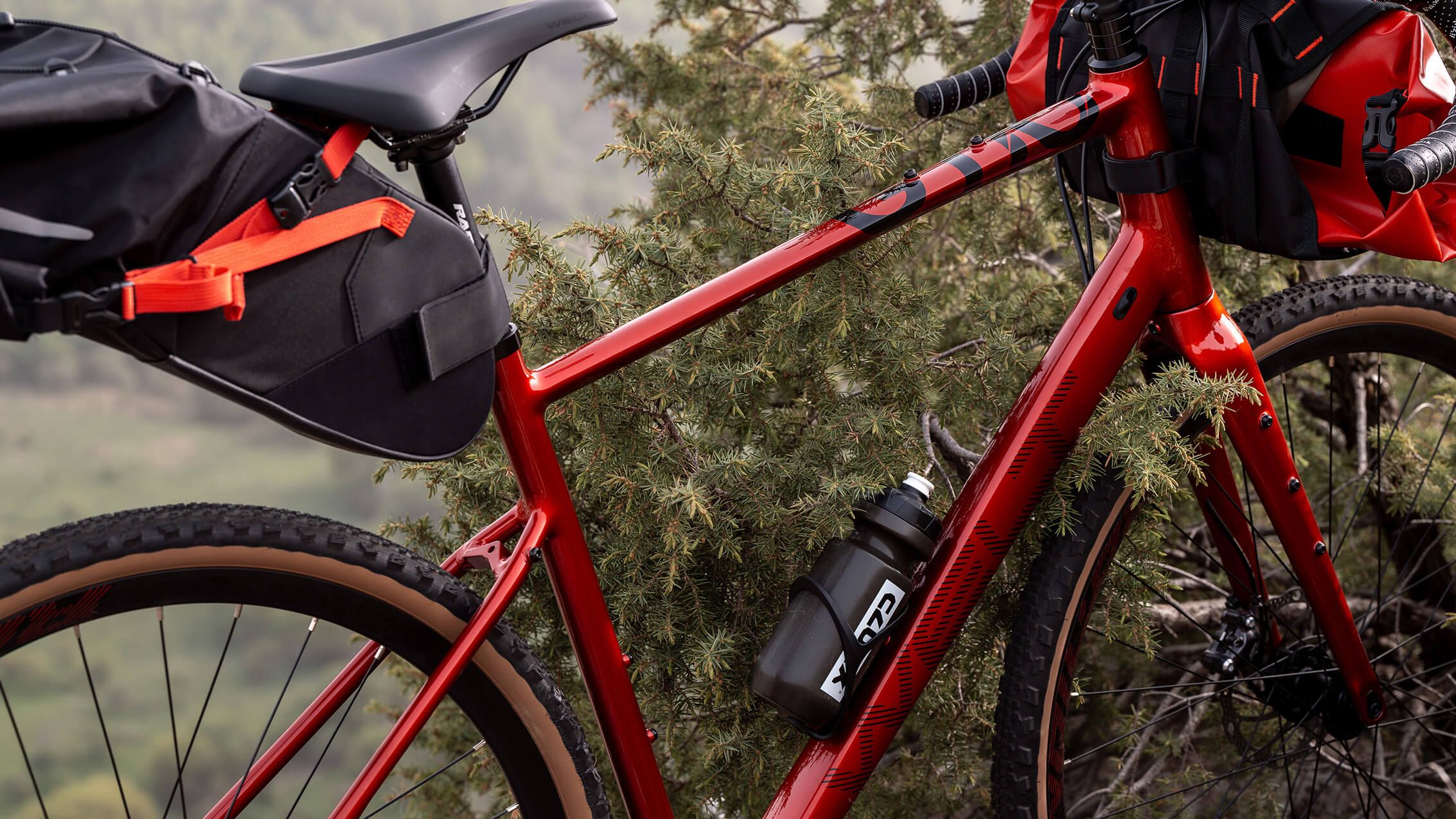

Stow everything you need on the frame

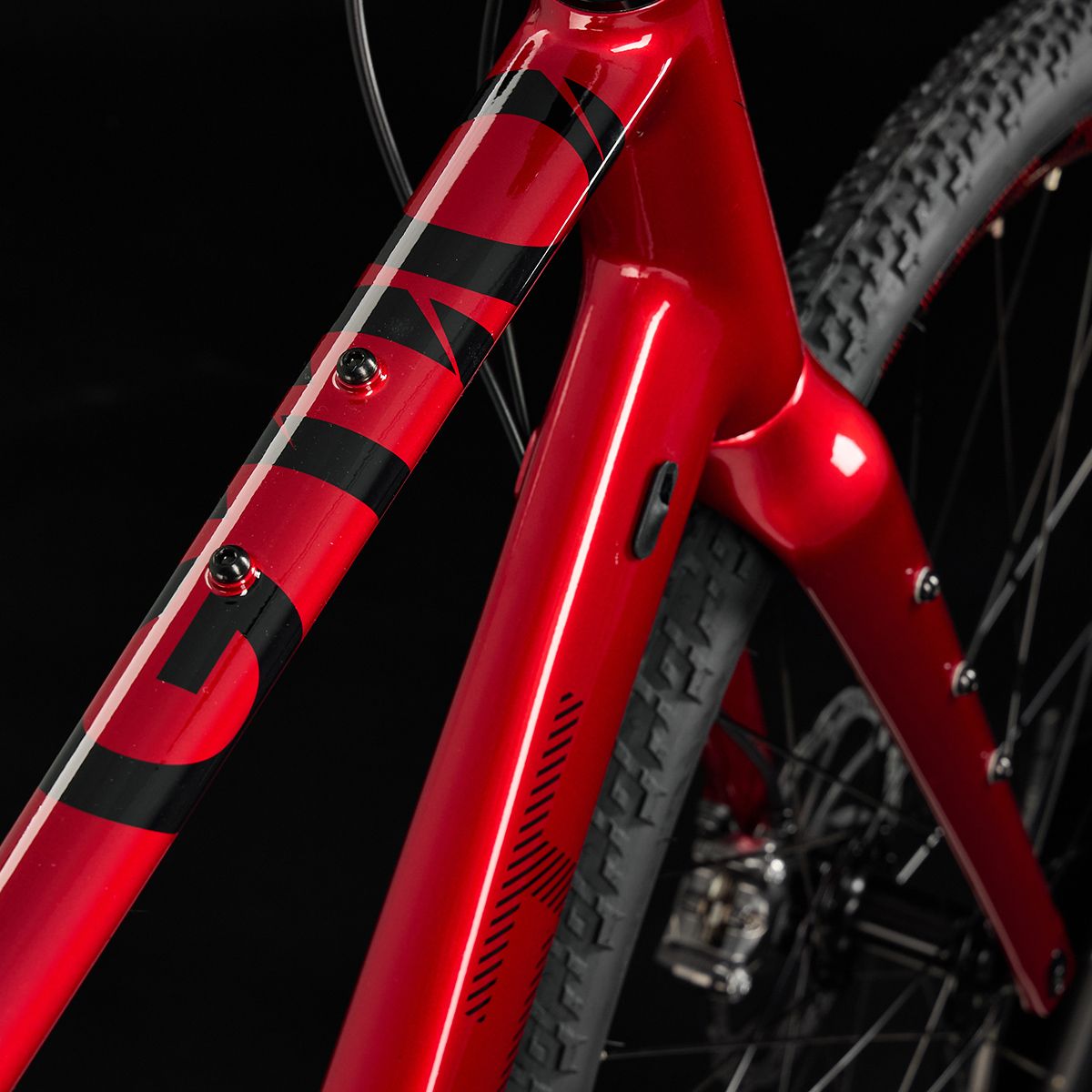

Besides traditional ways of attaching your gear, the G Series frame and fork are equipped with a huge number of mounting eyelets, so you can carry everything you need for a long bikepacking trip.

Shine even in difficult conditions

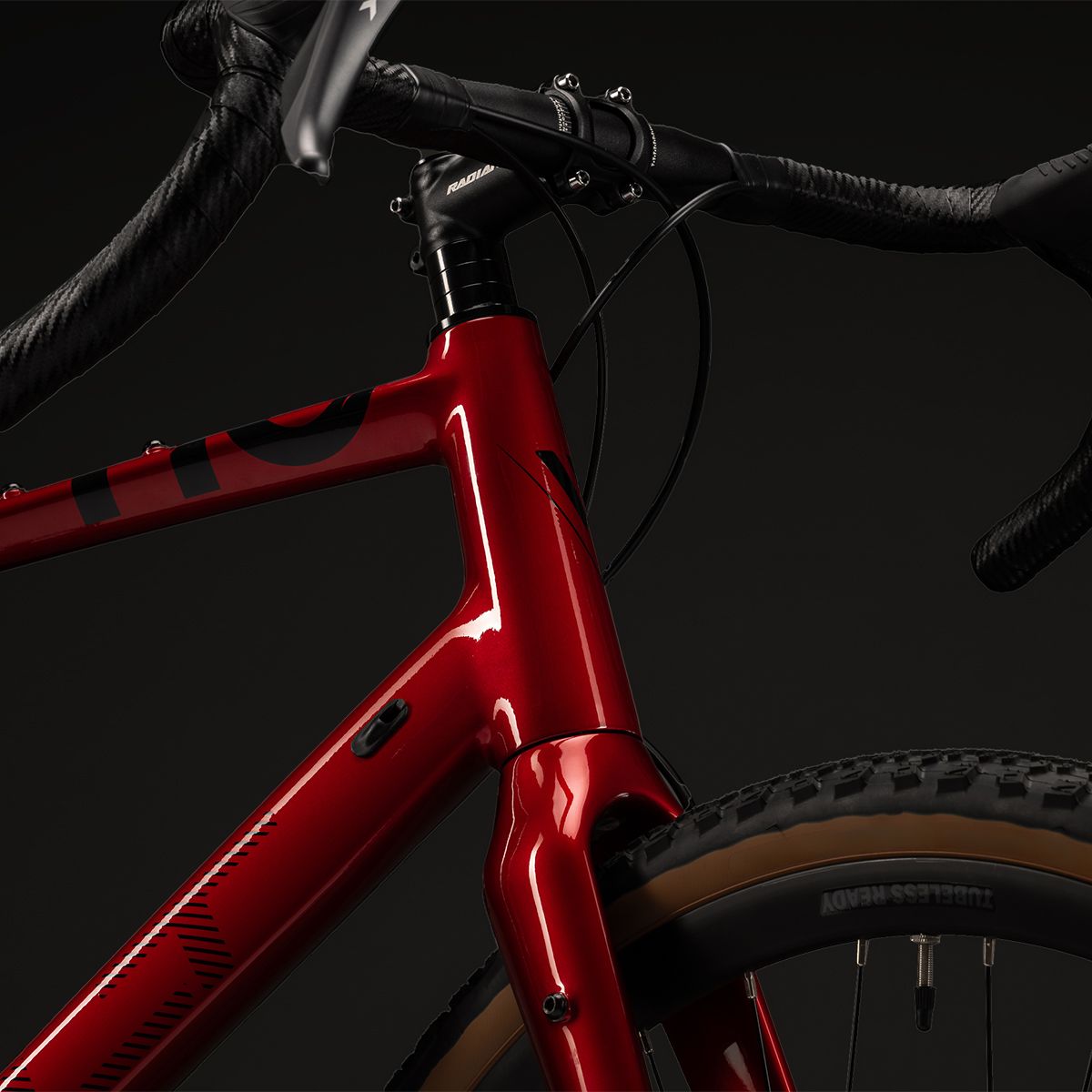

Jointless connections of the main frame tubes, inner cable routing, wheel mounting with hollow axles, carbon fork for more comfort and less weight of the bike.

Great choice for:

For uncompromising explorers of all gravel landscapes, for whom the road is one of the main aspects of life. For riders who are mad about cornering at high speed keeping full control

Specifications

Frame Alloy 6061 Gravel

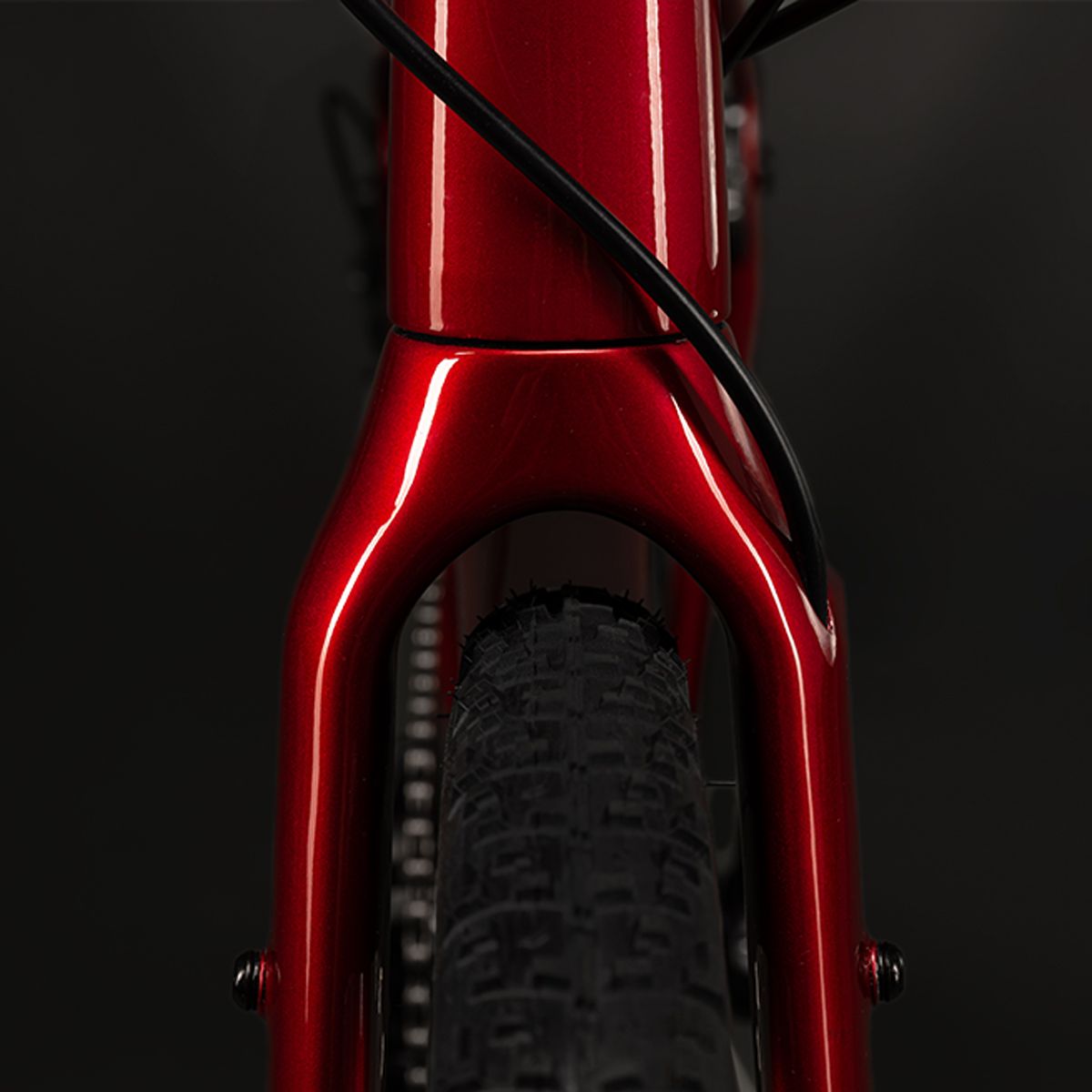

Fork Rigid carbon fork steerer, cable routing
Front Derailleur -

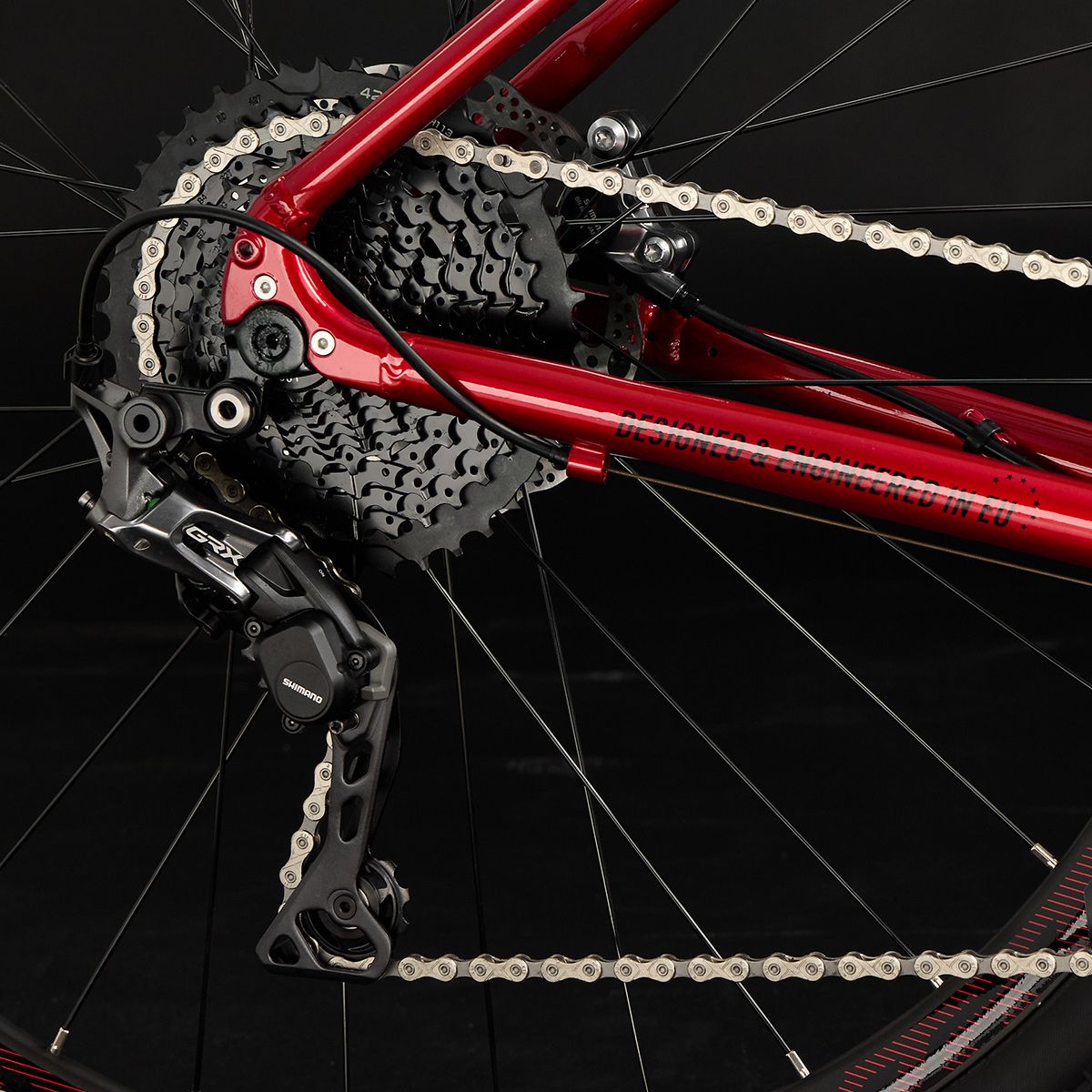

Rear Derailleur Shimano GRX RD-RX812, 11-speed, Shadow Plus
Shifters Shimano GRX, BL-RX810-L
Brakes Hydraulic disc brake
Tires 45c
Cassette SunRace TW, CSMS7
Hubs Hartex X-Grit
Handlebars Gravel Alloy Dropbar - Width:420mm, Reach:80mm, Drop:125mm, Flare:20 degree
Crankset Prowheel RPP
Rims EL-2325D - 23mm
Fork type Rigid
Wheel size DH-969/970T:2F+4R
Speeds 1x11
Saddle Welt Gravel Saddle
Front brake Shimano GRX
Rear brake Shimano GRX

Geometry

Geometry diagram
Measure XS S M L XL
Wheel size 700с 700с 700с 700с 700с
A — Seat tube height (mm) 445 470 500 530 560
B - Effective top tube (mm) 530 550 576 588 601
C - Chain stay length (mm) 440 440 440 440 440
D - Head tube angle (degree) 71 71,75 71,75 71,75 71,75
E - Seat tube angle (degree) 73,5 73,5 73,5 73,5 73,5
F - Bottom bracket drop (mm) 80 80 80 80 80
G - Head tube lenght (mm) 140 160 180 200 210
I - Stack (mm) 576 598 616 636 645
H - Reach (mm) 363 373 393 400 410
J - Wheelbase (mm) 1017 1027 1053 1066 1076
